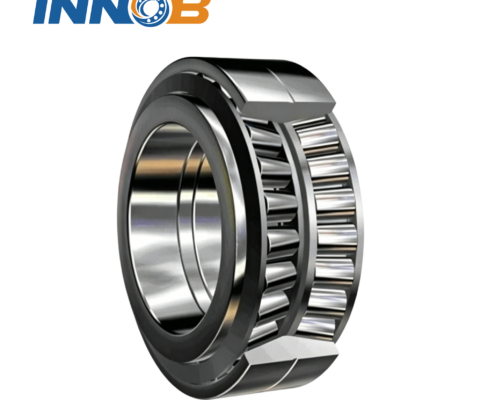

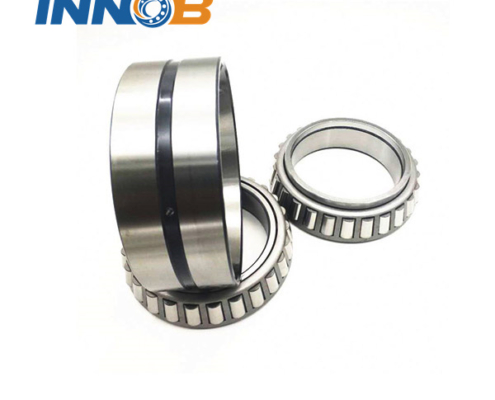

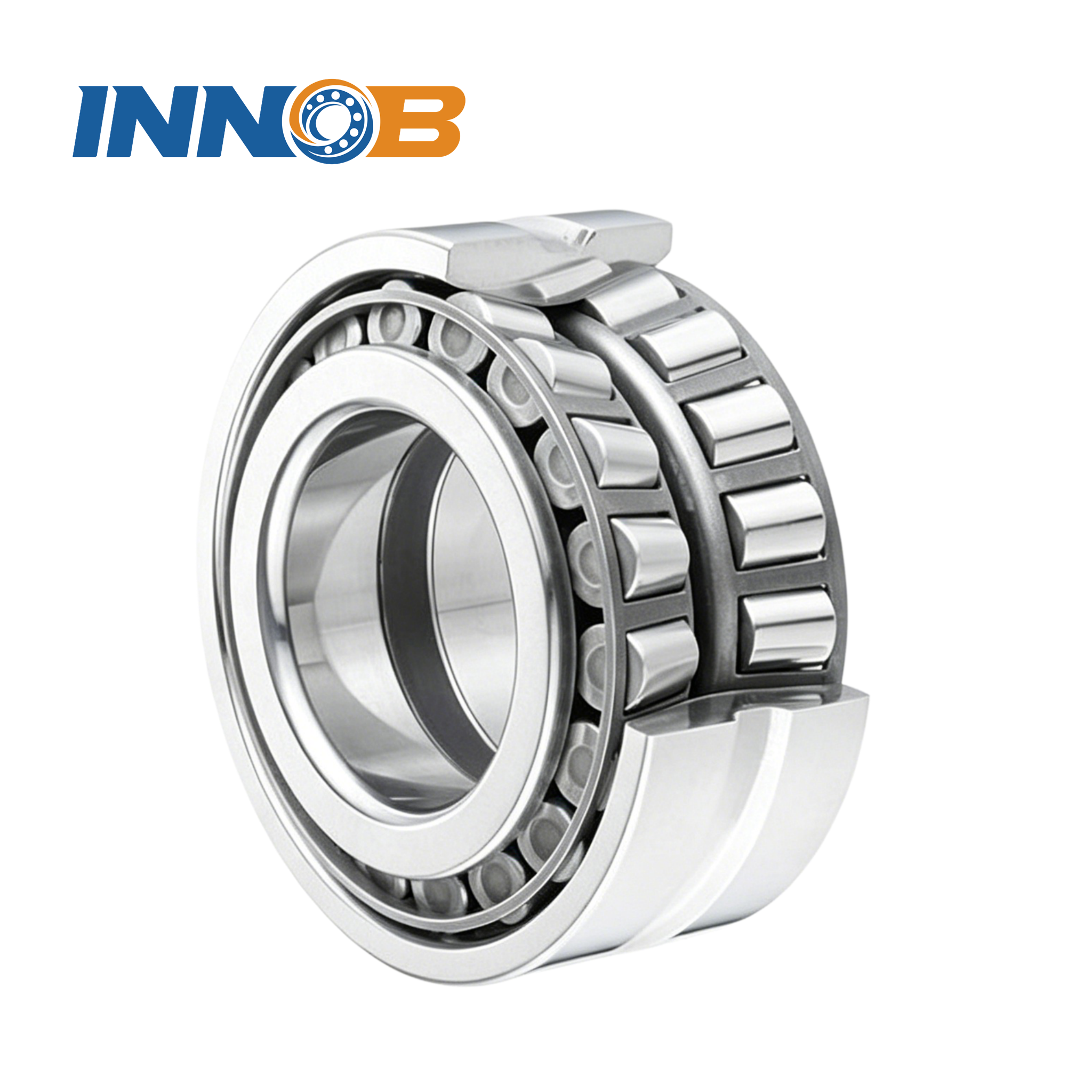

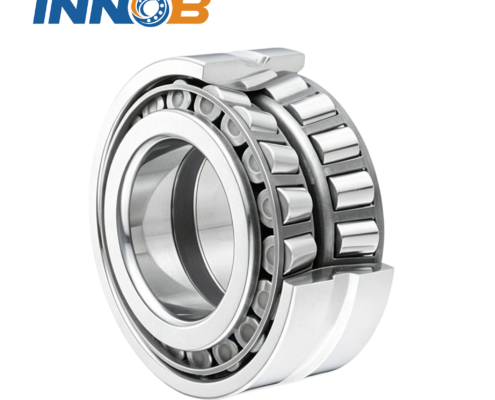

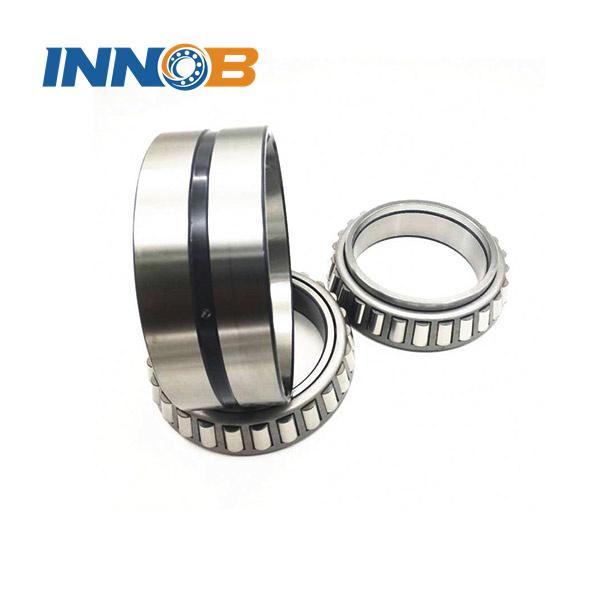

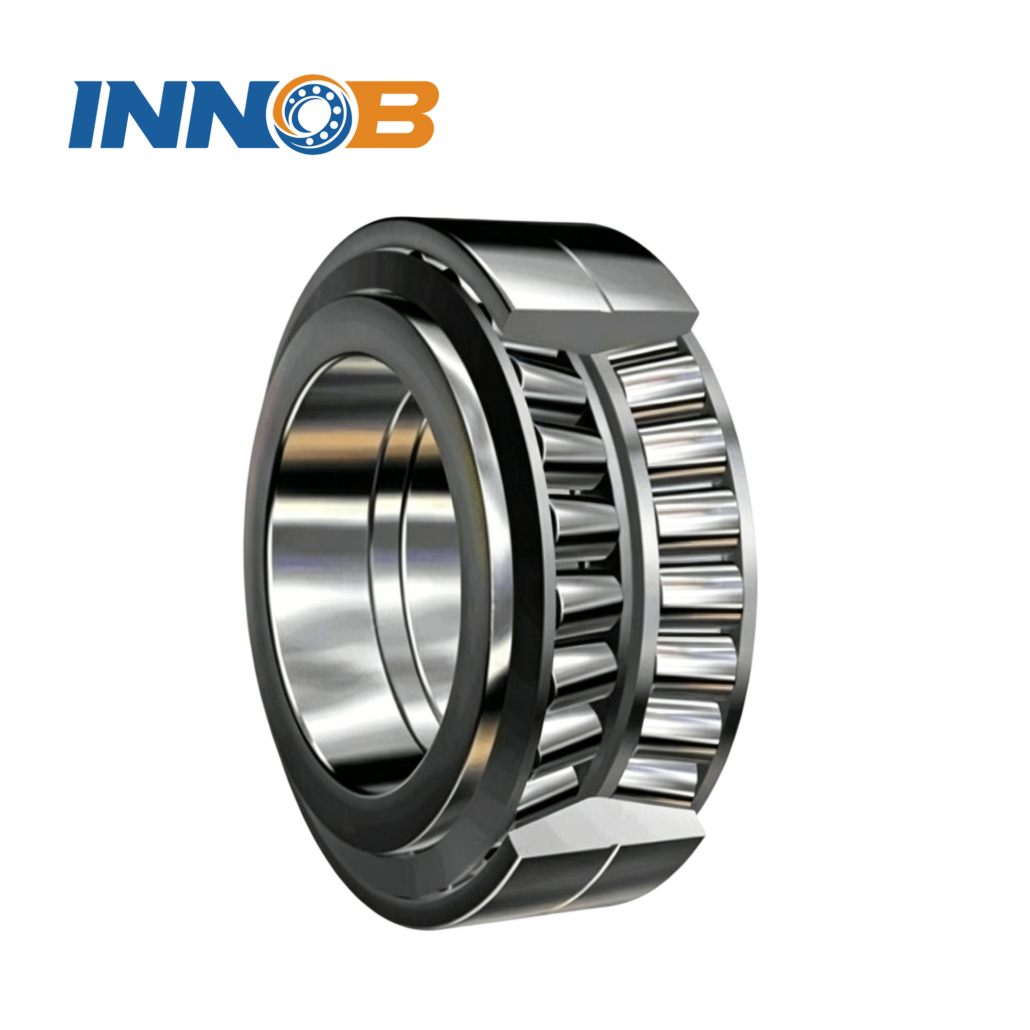

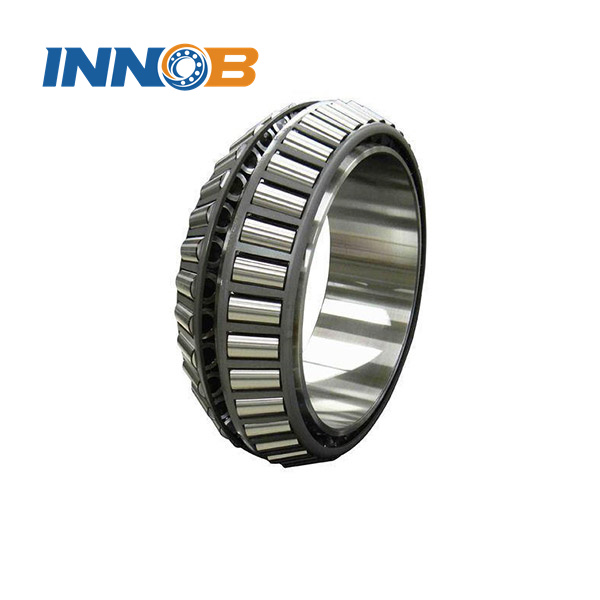

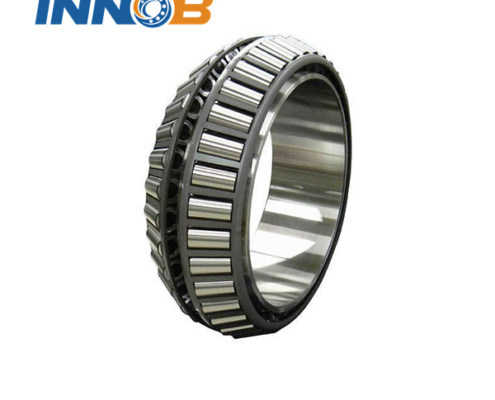

Double row tapered roller bearings
Double row tapered roller bearings can bear axial load in both directions while bearing radial load. The clearance has been adjusted before the product leaves the factory, so it can be directly installed and used without adjusting the clearance. Double row tapered roller bearings can limit the axial displacement of the bearing in two directions relative to the bearing seat within the axial clearance of the bearing.
Product Parameter
Principal dimensions | Basic load ratings | Limiting speed | Designation | ||||
Dynamic | Static | Grease | Oil | ||||
d | D | B | Cr | Cor | RPM | RPM | |
mm | KN | r/min | |||||
100 | 180 | 84 | 603 | 1010 | B697820L | ||
100 | 180 | 87 | 603 | 1010 | 352220 | ||
100 | 215 | 110 | 713 | 1100 | 45T202211-1F2 | ||
105 | 160 | 86 | 411 | 796 | LY-3016 | ||
110 | 180 | 76 | 473 | 839 | 352122 | ||
110 | 200 | 101 | 763 | 1310 | 352222 | ||
110 | 200 | 101 | 764 | 1308 | LY-3028 | ||
110 | 200 | 102 | 763 | 1310 | 352222X2 | ||
110 | 180 | 86 | 394 | 788 | 32024T86/DB | ||
110 | 240 | 118 | 662 | 1040 | 370622 | ||
111.125 | 190.5 | 412 | 845 | 71437/71751D | |||
114.3 | 279.4 | 1190 | 1740 | LY-3018 | |||
120 | 200 | 90 | 663 | 900 | 352124 | ||
120 | 200 | 90 | 663 | 900 | 2697724 | ||
120 | 215 | 109 | 843 | 1480 | 352224 | ||
130 | 200 | 75 | 425 | 958 | 352026 X2 | ||
130 | 280 | 132 | 1050 | 1560 | 31326/DF | ||
130 | 200 | 110.4 | 542 | 1060 | 32023/DB | ||
130 | 210 | 90 | 618 | 1150 | 352126 | ||
130 | 230 | 120 | 916 | 1680 | 352226 X2 | ||
130 | 230 | 150 | 842 | 957 | 350626SC | ||
140 | 210 | 75 | 498 | 924 | 352028 RX2 | ||
140 | 210 | 100 | 538 | 1066 | 32028T100/DB | ||
150 | 320 | 150 | 1250 | 2210 | 31330X/DF | ||
160 | 240 | 90 | 670 | 1062 | 352032 RX2 | ||
160 | 270 | 120 | 947 | 2020 | 352132 X2 | ||
160 | 270 | 120 | 947 | 2020 | 352132 | ||
170 | 260 | 100 | 833 | 1458 | 352034/YA | ||
170 | 260 | 95 | 811 | 1630 | 352034 X2 | ||
177.8 | 288.925 | 1070 | 1220 | HM237545/HM237510CD | |||
177.8 | 288.925 | 123.825 | 1091 | 1870 | HM237546D/HM237510 | ||
180 | 250 | 80 | 519 | 1370 | 352936 | ||
180 | 250 | 74 | 504 | 1263 | 352936 X2 | ||
180 | 280 | 108 | 972 | 1930 | 352036 X2 |
