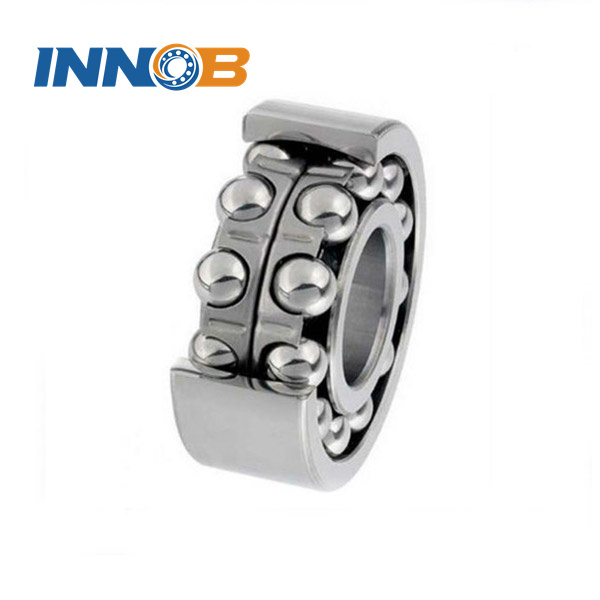

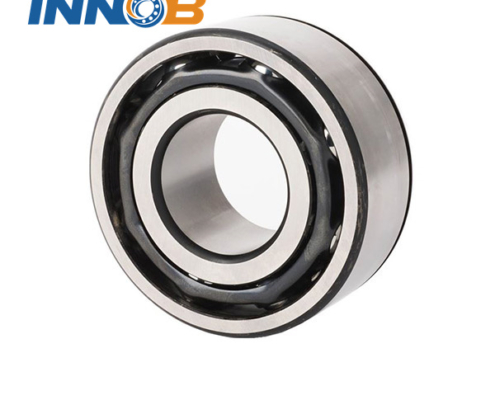

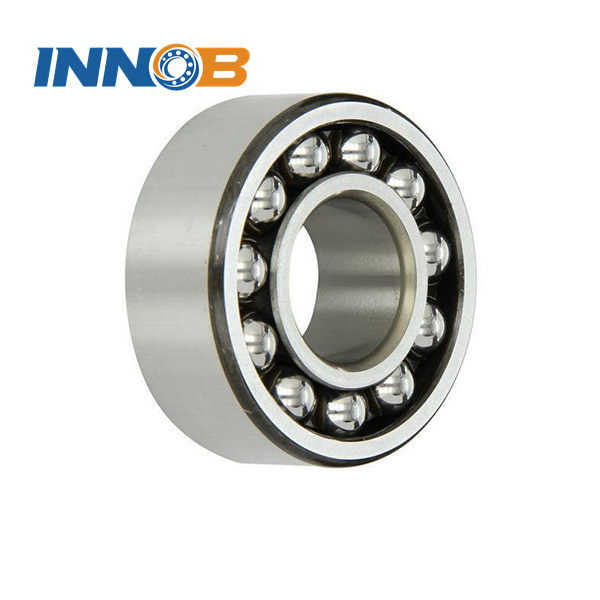

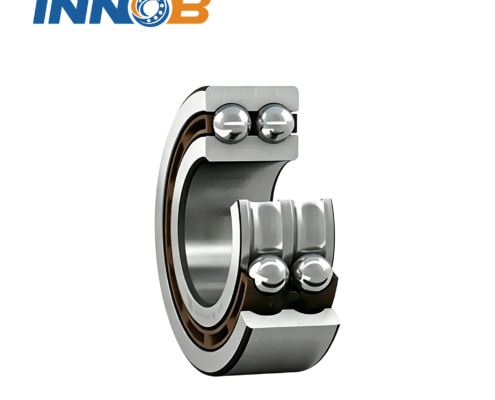

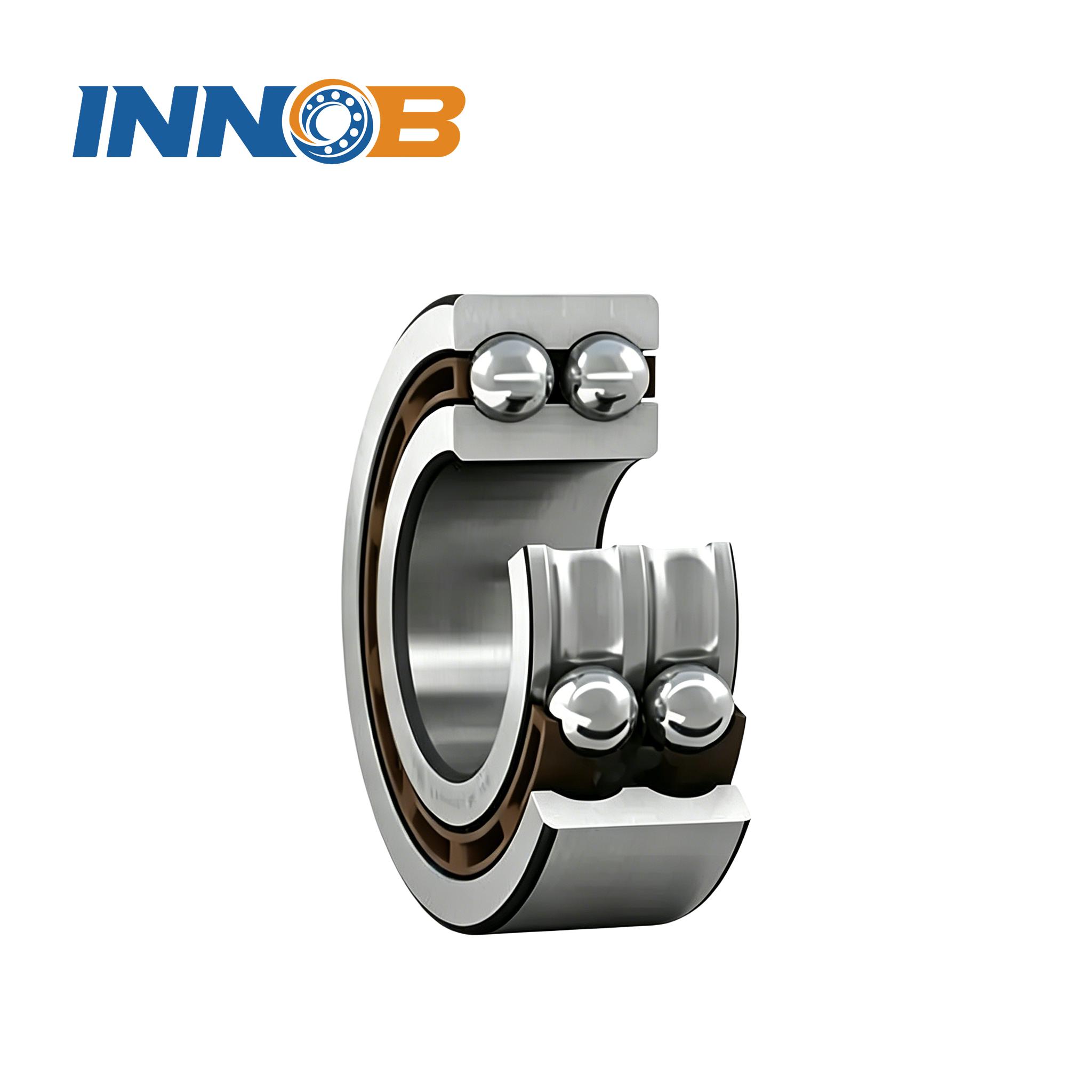

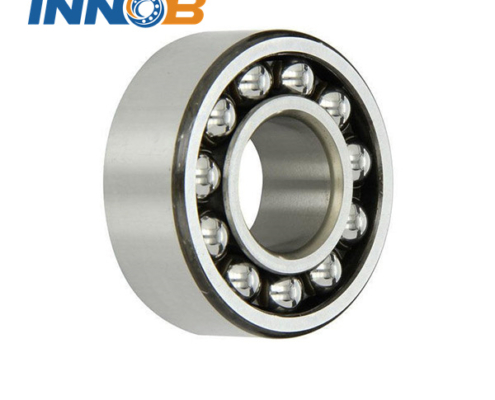

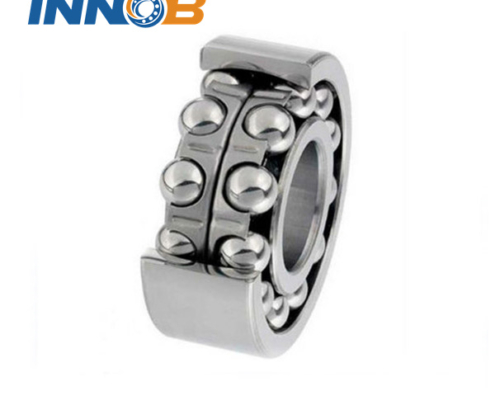

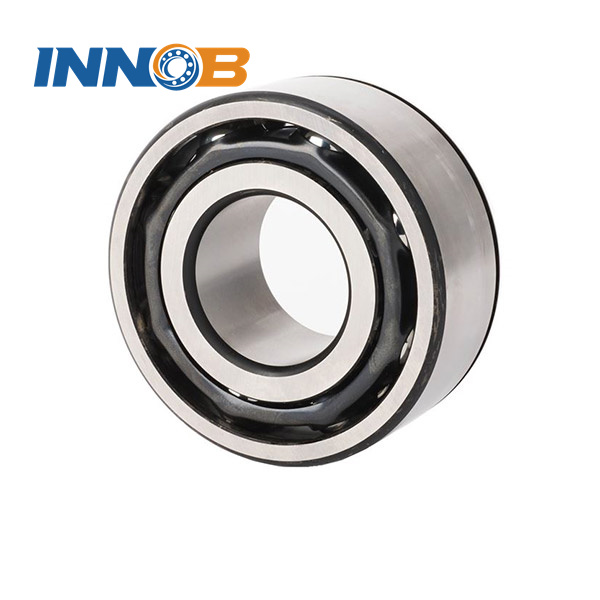

Double row deep groove ball bearings
double row deep groove ball bearings correspond in design to single row deep groove ball bearings. They have deep uninterrupted raceways and high conformity between the balls and raceways. They are able to carry axial loads acting in both directions in addition to radial loads. double row deep groove ball bearings are very suitable for bearing arrangements where the load carrying capacity of a single row bearing is inadequate. For the same bore and outside diameter, double row bearings are slightly wider than single row bearings in the 62 and 63 series, but have a considerably higher load carrying capacity. Double row deep groove ball bearings are only available as open bearings (without seals or shields).
Product Parameter
| Principal dimens | Basic load ratings | Speed ratings | Designations | ||||
| dynamic | static | Reference speed | Limiting speed | Bearing | |||
| d | D | B | C | C0 | |||
| mm | kN | r/min | |||||
| 10 | 30 | 14 | 9.23 | 5.2 | 40 000 | 22 000 | 4200 ATN9 |
| 12 | 32 | 14 | 10.6 | 6.2 | 36 000 | 20 000 | 4201 ATN9 |
| 12 | 37 | 17 | 13 | 7.8 | 34 000 | 18 000 | 4301 ATN9 |
| 15 | 35 | 14 | 11.9 | 7.5 | 32 000 | 17 000 | 4202 ATN9 |
| 15 | 42 | 17 | 14.8 | 9.5 | 28 000 | 15 000 | 4302 ATN9 |
| 17 | 40 | 16 | 14.8 | 9.5 | 28 000 | 15 000 | 4203 ATN9 |
| 17 | 47 | 19 | 19.5 | 13.2 | 24 000 | 13 000 | 4303 ATN9 |
| 20 | 47 | 18 | 17.8 | 12.5 | 24 000 | 13 000 | 4204 ATN9 |
| 20 | 52 | 21 | 23.4 | 16 | 22 000 | 12 000 | 4304 ATN9 |
| 25 | 52 | 18 | 19 | 14.6 | 20 000 | 11 000 | 4205 ATN9 |
| 25 | 62 | 24 | 31.9 | 22.4 | 18 000 | 10 000 | 4305 ATN9 |
| 30 | 62 | 20 | 26 | 20.8 | 17 000 | 9 500 | 4206 ATN9 |
| 30 | 72 | 27 | 41 | 30 | 16 000 | 8 500 | 4306 ATN9 |
| 35 | 72 | 23 | 35.1 | 28.5 | 15 000 | 8 000 | 4207 ATN9 |
| 35 | 80 | 31 | 50.7 | 38 | 14 000 | 7 500 | 4307 ATN9 |
| 40 | 80 | 23 | 37.1 | 32.5 | 13 000 | 7 000 | 4208 ATN9 |
| 40 | 90 | 33 | 55.9 | 45 | 12 000 | 6 700 | 4308 ATN9 |
| 45 | 85 | 23 | 39 | 36 | 12 000 | 6 700 | 4209 ATN9 |
| 45 | 100 | 36 | 68.9 | 56 | 11 000 | 6 000 | 4309 ATN9 |
| 50 | 90 | 23 | 41 | 40 | 11 000 | 6 000 | 4210 ATN9 |
| 50 | 110 | 40 | 81.9 | 69.5 | 10 000 | 5 300 | 4310 ATN9 |
| 55 | 100 | 25 | 44.9 | 44 | 10 000 | 5 600 | 4211 ATN9 |
| 55 | 120 | 43 | 97.5 | 83 | 9 000 | 5 000 | 4311 ATN9 |
| 60 | 110 | 28 | 57.2 | 55 | 9 500 | 5 300 | 4212 ATN9 |
| 60 | 130 | 46 | 112 | 98 | 8 500 | 4 500 | 4312 ATN9 |
| 65 | 120 | 31 | 67.6 | 67 | 8 500 | 4 800 | 4213 ATN9 |
| 70 | 125 | 31 | 70.2 | 73.5 | 8 000 | 4 300 | 4214 ATN9 |
| 75 | 130 | 31 | 72.8 | 80 | 7 500 | 4 000 | 4215 ATN9 |
| 80 | 140 | 33 | 80.6 | 90 | 7 000 | 3 800 | 4216 ATN9 |
| 90 | 160 | 40 | 112 | 122 | 6 300 | 3 400 | 4218 ATN9 |
