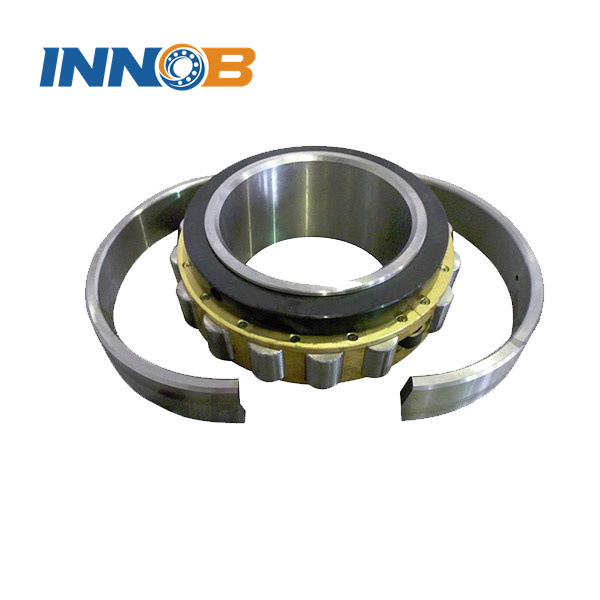

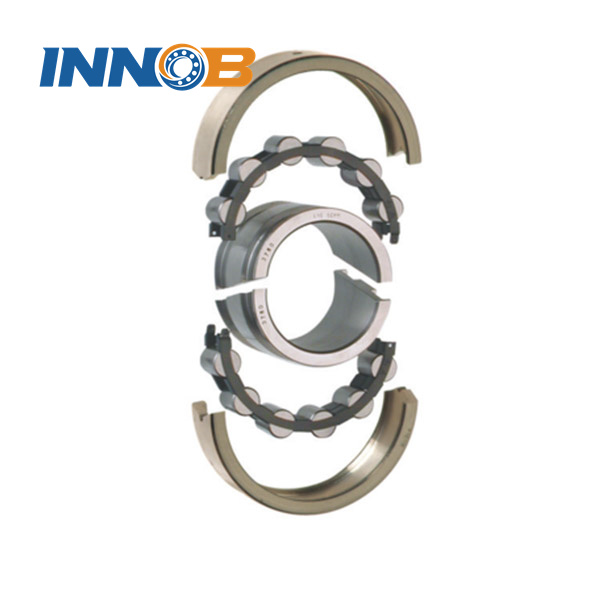

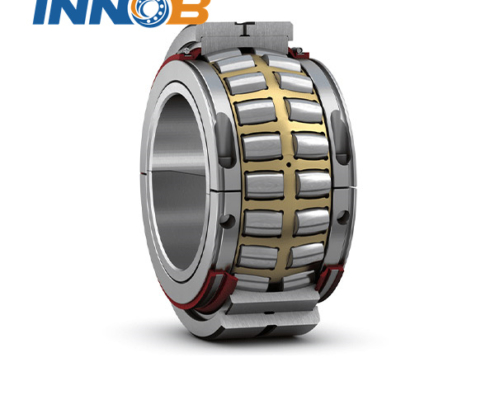

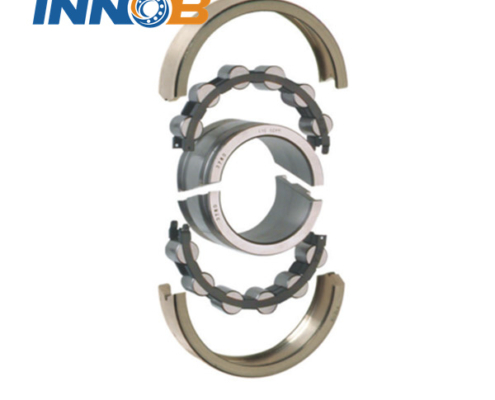

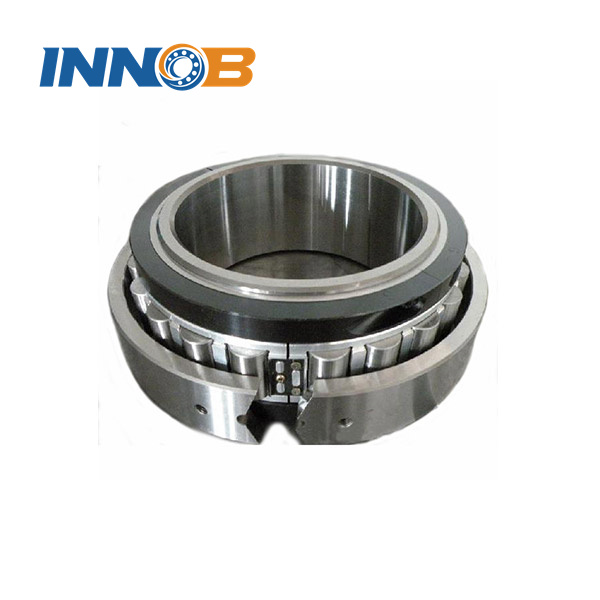

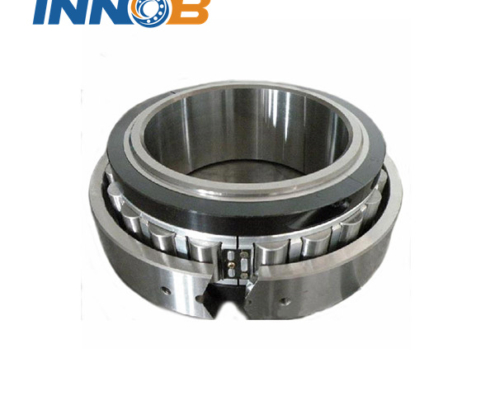

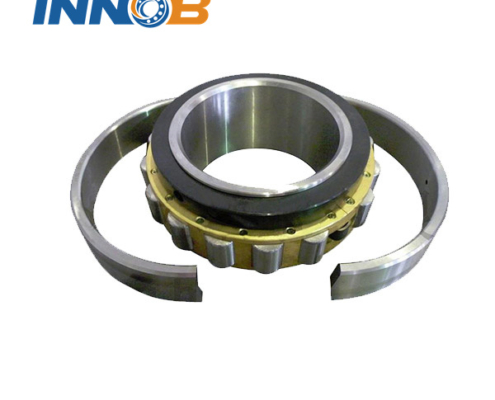

Split cylindrical roller bearings
Split cylindrical roller bearings have a row of cylindrical rollers and cylindrical inner and outer ring raceways. Split cylindrical roller bearings are used for rolling machinery that is very difficult to install, disassemble and maintain. They are usually installed in boxes suitable for different types of enclosures. Split cylindrical roller bearings have a wide range of products and can be used in many different industries, from the light and compact 100 series (which can achieve high operating speeds) to the 03/03E series (which can be used in extreme load conditions).
Product Parameter
Split Cylindrical Roller Bearing | ||||
Bearing Number | d/mm | D/mm | C/mm | Weight/kg |
01B480M | 480 | 628.65 | 144 | 128 |
02B480M | 480 | 698.5 | 223 | 263 |
03XB480M | 480 | 800.1 | 300 | 630 |
01B500M | 500 | 654.05 | 168 | 136 |
02B500M | 500 | 717.55 | 226 | 272 |
03B500M | 500 | 850.9 | 300 | 730 |
01B530M | 530 | 692.15 | 168 | 164 |
02B530M | 530 | 762 | 229 | 309 |
03B530M | 530 | 850.9 | 300 | 730 |
01B560M | 560 | 717.55 | 168 | 178 |
02B560M | 560 | 793.75 | 233 | 336 |
03EB560M | 560 | 863.6 | 310 | 635 |
01B580M | 580 | 749.3 | 172 | 195 |
02B580M | 580 | 812.8 | 232 | 340 |
01B600M | 600 | 774.7 | 172 | 210 |
02B600M | 600 | 838.2 | 214 | 381 |
03EB600M | 600 | 890 | 310 | 680 |
